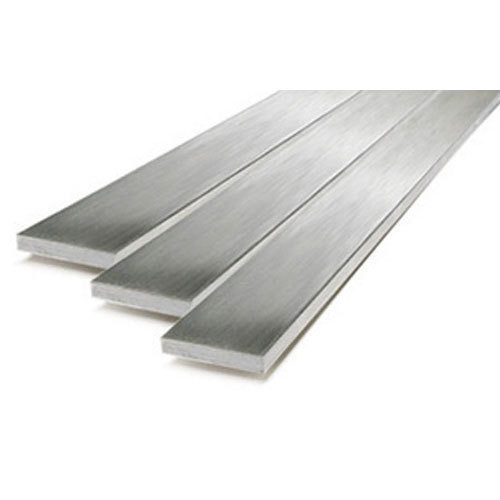

Engine Flat 400mm AMS 5604 S17400 Stainless Steel Bar

Product Categories
Shanghai Bozhong Metal Group Co., Ltd.
Contact Now

Engine Flat 400mm AMS 5604 S17400 Stainless Steel Bar

  • 1
  • 2
  • 3

Brand Name : Bozhong

Model Number : 17-7 pH

Certification : ISO,BV,SGS,Mill Test Certificate

Place of Origin : China

MOQ : 500KG

Price : negotiable

Payment Terms : L/C

Supply Ability : 100TONS PER MONTH

Delivery Time : 7-25DAYS ACCORDING TO YOUR ORDER QUANTITY

Packaging Details : Standard Seaworthy Package

Material : Stainless Steel and Special Alloys

Standard : AMS 5604, ASTM A 693, ASME SA 693

UNS : S17400

Grade : 17-7 pH

Shape : Round,Square,Flat,Angle

Application : Construction,Industry,surgical tools

Dimensions : 3-400mm

Length : Customers' Requirements

Contact Now

17-7 pH Stainless Steel Plate/ Flat Bar/Sheet With Good Stock Price

17-4PH offers high strength and hardness along with excellent corrosion resistance.17-4 PH has been used for a variety of applications including oil field valve parts, chemical process equipment, aircraft fittings, fasteners, pump shafts, nuclear reactor components, gears, paper mill equipment, missile fittings, and jet engine parts.

17-4 PH is a registered trademark of AK Steel.

NS: S17400
Specifications: AMS 5604, ASTM A 693, ASME SA 693
International Specifications: Euronorm: X5CrNiCuNb16.4 Werstoff# 1.4542

Engine Flat 400mm AMS 5604 S17400 Stainless Steel Bar

Chemical Composition

The following table shows the chemical composition of grade 17-4 stainless steel.

Element Content (%)
Iron, Fe 73
Chromium, Cr 15.0 - 17.5
Nickel, Ni 3.0 - 5.0
Copper, Cu 3.0 - 5.0
Manganese, Mn 1.0
Silicon, Si 1.0
Tantalum, Ta 0.45
Niobium, Nb (Columbium, Cb) 0.45
Nb + Ta 0.15 - 0.45
Carbon, C 0.070
Phosphorous, P 0.040
Sulfur, S 0.030

Physical Properties

The physical properties of grade 17-4 stainless steel are given in the following table.

Properties Metric Imperial
Density 7.75 g/cm3 0.280 lb/in³

Mechanical Properties

The mechanical properties of annealed grade 17-4 stainless steel are displayed in the following table.

Properties Metric Imperial
Shear modulus 77.4 GPa 11200 ksi
Elastic modulus 190-210 GPa 27557-30458 ksi
Poisson's ratio 0.27-0.30 0.27-0.30
Hardness, Brinell 352 352
Hardness, Knoop (estimated from Rockwell C) 363 363
Hardness, Rockwell C 36 36
Hardness, Vickers (estimated from Rockwell C) 349 349
